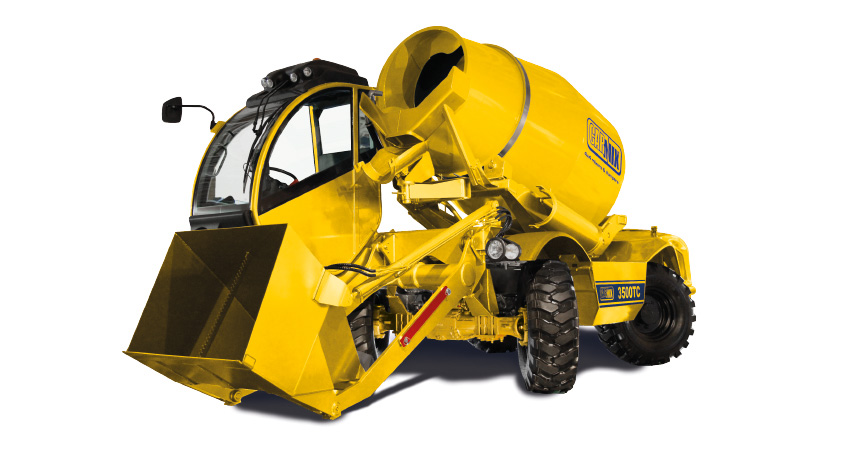

Most Advanced 3.5 m3 Self Loading Concrete Mixer Ever

  • The newest CARMIX product, CARMIX 3500 TC: off road self loading concrete mixer with 3.5 m3 mixing capacity at slump 1 – 4 cm.
  • Equipped with ultimate 4 sensors electronic scale as standard, for accurately measuring each material for maximum concrete quality.
  • The new CARMIX 3500 TC concrete mixer  presents a new cab comfort in order to guarantee safe and visibility to the operator.
  • Shovel with capacity 600 litre engineered volumetrically to allow self discharge of excess material.  Equipped with hydraulic opening gate and integrated hopper.
  • All around mixing discharge capability, with drum that can be slewed hydraulically to 270°.
  • High strength steel chassis engineered for heavy duty off-road operation.
  • The new CARMIX 3500 TC concrete mixer optionally equipped with Promix technology which allow to analyze your concrete: slump, volume, temperature, aridity and ready-mix indicator.


Mixing UnitConcrete mixer: drum capacity 4.850 liters (1.066 gal UK – 1.281 gal US). Concrete drum output: 3,5 m3/IN. EN 206-1 IN SLUMP S1 Class, yield not vibrated. Double mixing screws, cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed independent from r.p.m. of diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for high discharge over 2 m on the four sides of the vehicle.

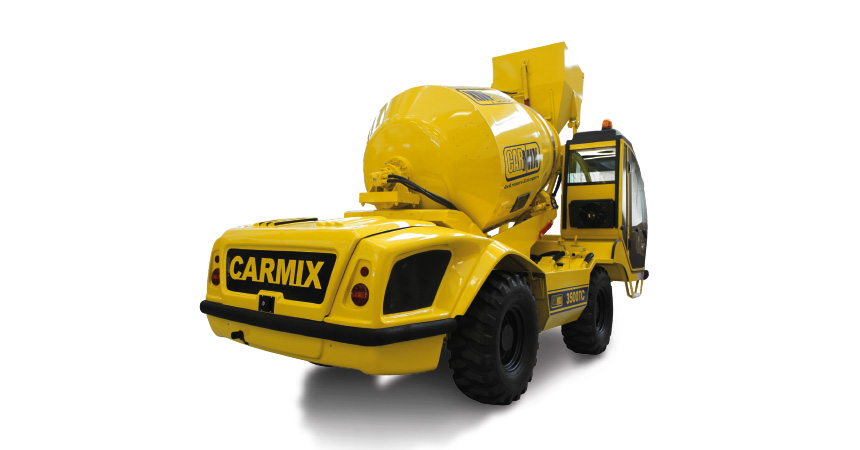

EngineDiesel PERKINS 1104 C-44 TA Turbo, water – cooled, 4 cylinders. Rated power KW 80 (107 HP) set at 2300 rpm. Engine mounted traversal on the rear.
Transmission Hydrostatic Bosch Rexroth. Pump and motor are connected to the differentials through a 2 speed reducer (working and transfer). 4 wheel drive and steering.
AxlesDana Spicer with oil bath disc brakes and planetary reducers.
SpeedWorking speed from 0 to 9 km/h (0 – 5,59 mph), road transfer from 0 to 25 km/h (0 – 15,53 mph) . Electric servo control.

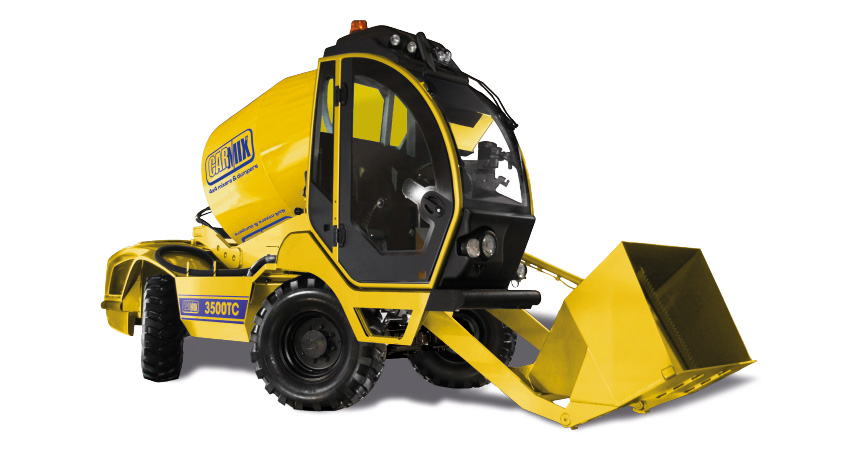

CabinNew: comfort, safe and visibility matching edge design. Front cab on side of loading shovel. ROPS-FOPS type (UNI 11023). Clima, air conditioning heater available upon request.
Chassis Steel profile specially engineered for off-road operations.
Hydraulic system Three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 2 gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type.
JoymixAll hydraulic functions of shovel controlled by a single fully servo controlled Joystick.
Concrete-mate Ultimate “4 sensors” electronic scale, easy to use and extra accurate for any kind of mix-design.
PromixIn-drum probe, easy allows to anayze your concrete: slump, volume, temperature, humidity and ready-mix indicator: your on site Lab. (On request)
Loading Shovel Effective capacity per load 600 liters (131 UK gal – 158 US gal), complete with hydraulic opening gate.
Chute Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height.
Water System Self-contained. Hydraulic driven water pump, water meter, washing outlet. High pressure water pump (on request).
Gradient Fully loaded 30%.
Brakes Oil bath disc brakes inside differential axles. Twin independent circuits. Negative hydraulic parking brake.
Tyres Off road industrial type 16/70-20 PR 14.
Steering Hydrostatic. 3 ways steering. Radius: internal: mm. 1700, external mm 3.700.
Electric System 12 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
Tanks Water: 2×400 liters (2×87 gal UK – 2×105 gal US). Diesel: 115 liters (25 gal UK – 30 gal US) . Hydraulic oil: 80 liters (17 gal UK – 4 gal US).
Weight About Kg. 7.400 (16.314,2 lb). Equally distributed on both axles.
SafetyMachine equipped with checking and block valves for maximum safety of the operator. Self control avoids drum to slew if shovel’s arm is lifted.
Catalogue The machine is equipped with Use and Maintenance and Spare Parts Manuals according to CE regulations.
